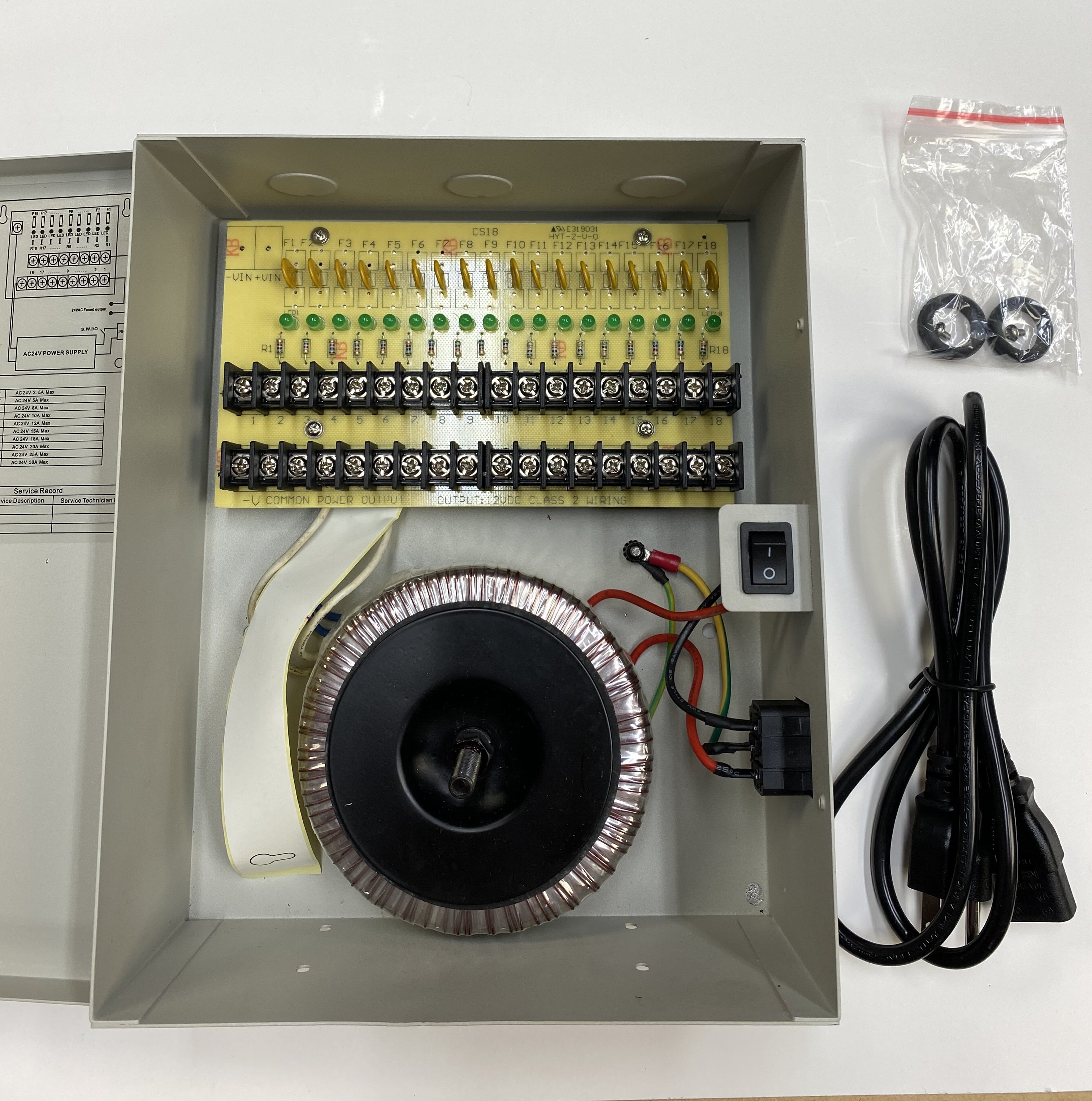

24VAC Multi Camera Power Supply Box
SSC-1824VACMulti-Camera Dual Voltage Power Supply 24 Volts AC
18 channel power box 24VAC.
Warning: This power supply is intended only for use with 24V cameras. DO NOT use with 12V cameras.
Power up 18 cameras through these unit. Plug this unit into the wall, and then plug cameras into it. Clean up your wiring jobs. No more need to have loose power adapters plugged into your outlets.
- Input: 110V AC, 60Hz
- Output: 24V AC X 18 outputs (0.67 Amp max per channel)
- Output Current: 12 Amps
- Output Power: 288 Watts
- Fuse Type: PTC
- Measurement (H*W*D): 10” x 8.25” x 3.5”
- Weight: 12 lbs / 5.5 kgs
- Wall mount design
- Metal covered case
- Individual PTC auto reset fuses
- Individual LED indicators
